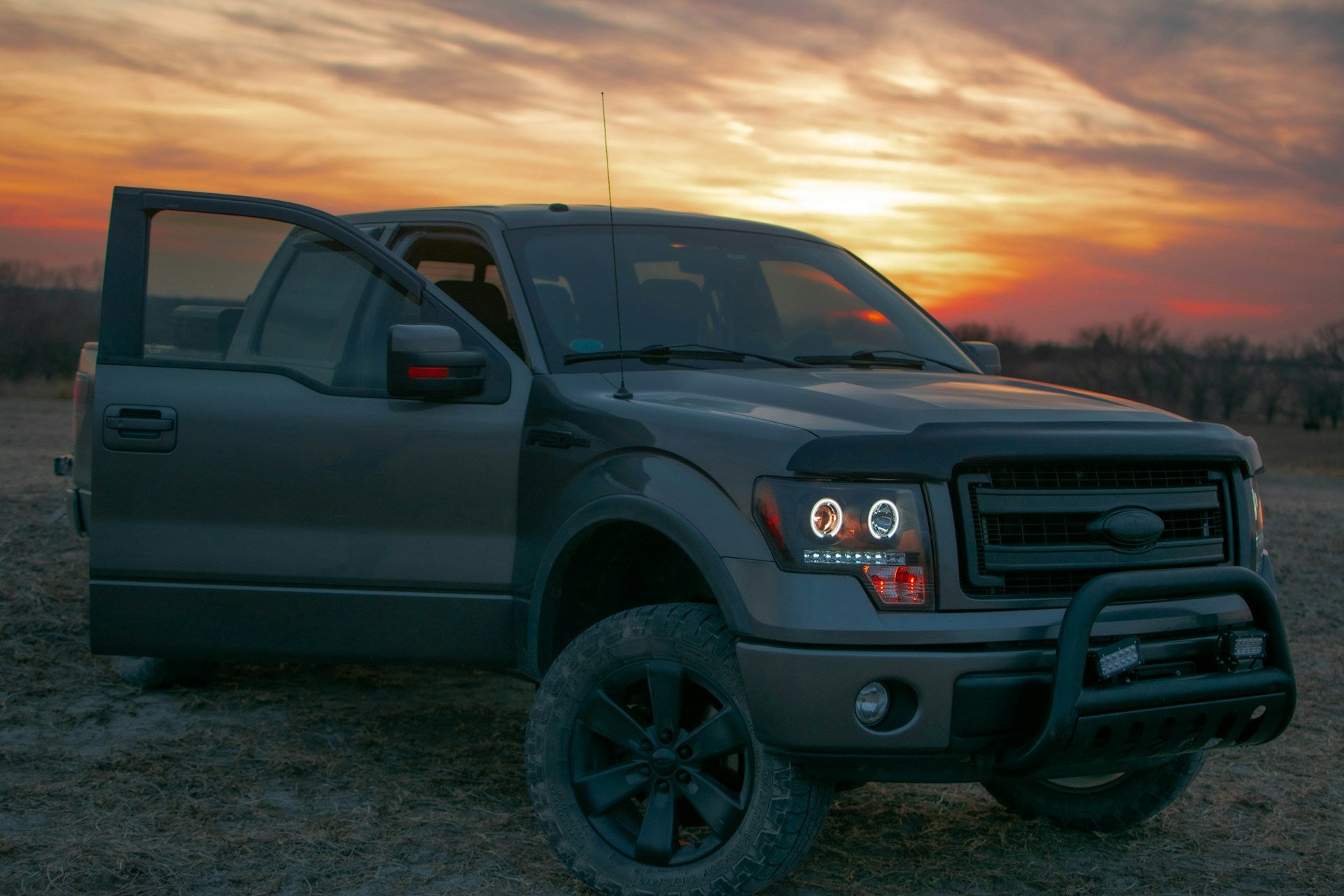

The 2026 Ford F-150 is a full-size pickup that tows up to 13,500 pounds and comes in three cab styles with three bed lengths. The 2026 Ford Ranger is a midsize pickup that tows up to 7,500 pounds and comes as a five-seat SuperCrew with a single 5-foot bed. A standard Ranger is 210.6 inches long; a non-Tremor, non-Raptor F-150 SuperCrew with the 5.5-foot box is 232.0 inches long.
Those numbers frame the choice. If your trailer weighs more than 7,500 pounds, or you need a long bed, a Regular Cab or six seats, the F-150 is the only one of the two that offers it. If your loads fit within the Ranger's ratings and you want a narrower, shorter truck for parking and driveways, the Ranger is worth a close look.
For drivers in Sealy, Katy, Brookshire, Fulshear, Columbus and Bellville, here is how the two trucks compare on Ford's published 2026 figures.
Towing and Payload
Every maximum below applies only to a specific configuration, not to every truck in the lineup.
Ford states that F-150 payload and towing are independent attributes and may not be achieved at the same time. Ford’s 2026 Ranger towing guide requires the Trailer Tow Package for trailers over 3,500 pounds and for the 7,500-pound maximum rating. The Ranger Raptor has a lower maximum tow rating of 5,510 pounds.
Entry-level engines show the gap too. The F-150's 2.7L EcoBoost V6 is rated for up to 8,400 pounds of towing and 1,775 pounds of payload. That tow rating is higher than the Ranger's top rating.
Ranger payload by configuration, from Ford's 2026 chart:
The payload for any individual truck is printed on its Tire and Loading Information label on the driver's door jamb. Passengers, cargo, accessories, hitch equipment and trailer tongue weight all count against it.
Engines
Cabs, Beds and Seating
Size: How Much Bigger Is the F-150?
Mirror dimensions vary with equipment. F-150 figures shown for standard mirrors exclude Raptor; available trailer-tow mirrors are wider. Confirm the dimensions of the specific truck before checking garage clearance.
Comparing crew-cab trucks, an F-150 SuperCrew with the 5.5-foot box is 21.4 inches longer than a Ranger. It is 4.4 inches wider without mirrors and 9.0 inches wider with them. A Regular Cab F-150 with the 6.5-foot box is 209.4 inches long, slightly shorter than a Ranger, but it seats three.
The F-150's shortest bed is 7.5 inches longer at the floor than the Ranger's, and its 8-foot bed is 38 inches longer. Both trucks clear a 48-inch-wide sheet of plywood between the wheel wells, the Ranger by only 0.2 inch. Only the F-150's 8-foot bed, at 97.6 inches, holds a full 96-inch sheet with the tailgate closed.
Measure your garage, parking space or driveway against the length and mirror-folded width above, then see both trucks in person.
Which Truck Fits Your Routine?
Start with the heaviest trailer you tow regularly, the number of people who ride along and the longest item you haul.
Tow over 7,500 lbs.: Only the F-150 is rated for it; plan on the 3.5L EcoBoost with the Tow/Haul Package and Max Tow Axle as weights approach 13,500 lbs.
Need six seats, a Regular Cab or an 8-foot bed: Only the F-150 offers them.
Want a hybrid: The F-150 offers the PowerBoost Full Hybrid; the Ranger has no hybrid.
Tow within the specific Ranger’s rating and want a smaller crew-cab truck: The Ranger is shorter and narrower than a comparable F-150 SuperCrew, with seating for five.
Compare the F-150 and Ranger at Ryan Ford in Sealy
See both trucks side by side at Ryan Ford. Browse our new Ford F-150 inventory and new Ford Ranger inventory. Bring your trailer weight and the items you haul most so we can match them to a specific truck's ratings.
